Twister KF

Kart for kids over the age of 15 who race with 125 cc non-shifter engines.

Top performance based on international race experience.

Product Details

  • Categories:Chassis



Top performance based on international race experience

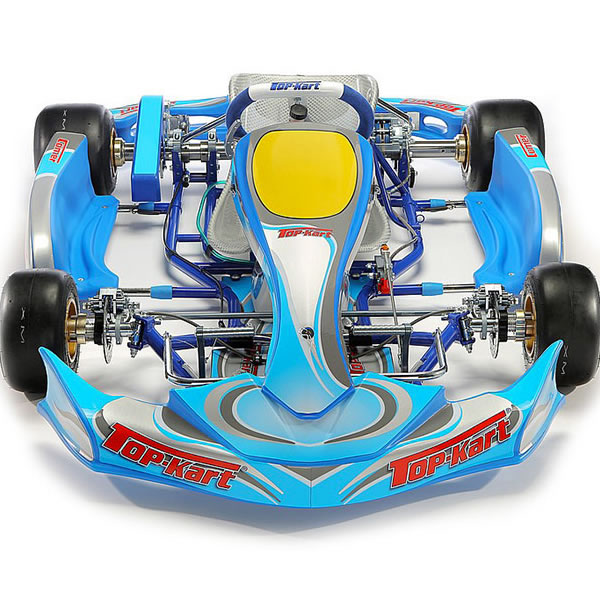

The Twister KF is engineered specifically for drivers over the age of 15 who race in the non-shifter KF category. Developed according to international technical guidelines to obtain CIK-FIA homologation, the Twister KFJ features a rear hydraulic brake system with ventilated disc and front brake assembly with cross-drilled discs and manual controls (as per regulation), pedals and footrest carved from solid Ergal, magnesium rims, adjustable and removable flat front bar, and plastic body work developed to optimize aerodynamic penetration.

With a frame built entirely of 30 mm diameter tubing, the chassis lends itself to multiple adjustments and adapts optimally to KF engines (125cc non-shifter engines with dry centrifugal clutch, equipped with exhaust valve, reed valve intake system, and 24 mm diameter carburetor).

The Twister KF is also fully compatible with the engines used in all single-make championships around the world.

The multiple set-up adjustment options make this kart ideal for inexperienced and expert drivers alike. The 32 mm front tube enhances the overall set-up and improves performance when entering corners, while the particular materials that constitute the frame increase the kart’s ability to drive smoothly through corners.

All of the technical solutions featured on the Twister KF have been developed by the Top-Kart Research and Development Department and have been tested and improved based on the Racing Team’s track experience in international competitions.


Kart for kids over the age of 15 who race with 125 cc non-shifter engines


  •     Chassis CR MO Ø 30/32
  •     Wheelbase 1050 mm
  •     Axle Ø 50 mm, adjustable height, with 3 bearings
  •     Spindles Ø 25, adjustable height
  •     Steering system with adjustable Ackerman
  •     Blue Alcantara steering wheel

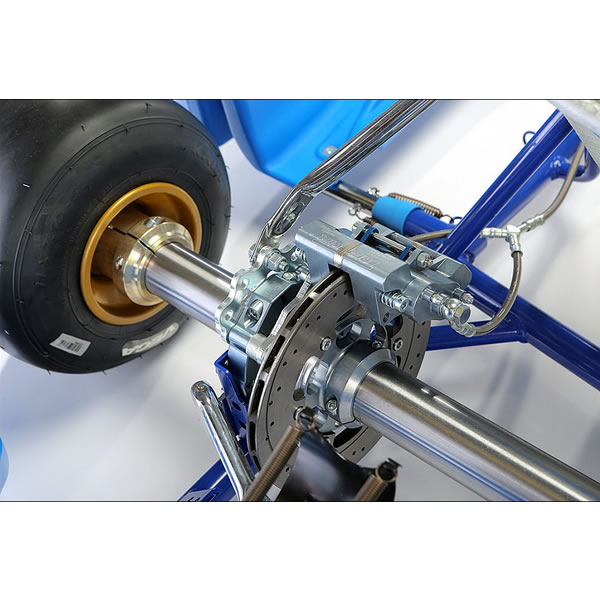

  •     Hydraulic breaks with rear self-ventilated floating disc and front cross-drilled discs
  •     Single-piece magnesium rims – front 5″x125/130, rear 5″x180/210
  •     Adhesive decal kit

Optional:

  •     Seat
  •     Tires
  •     Engine plate

Note – the chassis is sold without engine, exhaust, and carburetor.
